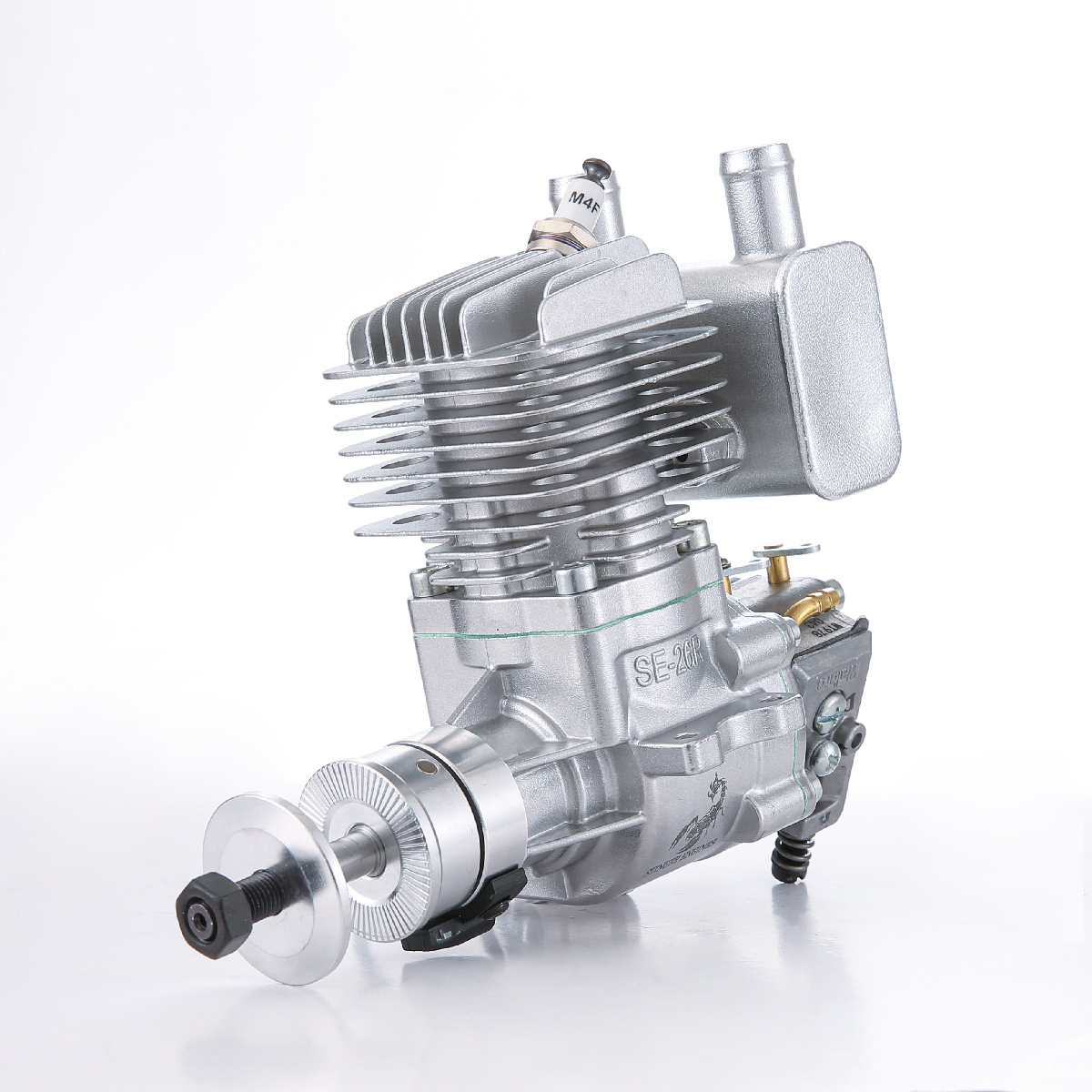

Stinger 26cc RE

Product description:
NEW Design, More powerful, Stronger material.More precision , More  shiny.Better cooling performance, Strong Power give you unprecedented fly experience.

Description

RCGF Stinger 26cc RE
Glow size:Powerful and stable !
NEW Design, More powerful, Stronger material , More precision , More  shiny .
Latest Design & Strong Power !
The NEW RCGF Stinger 26cc RE is the latest design engine. Better cooling performance, Strong Power give you unprecedented fly experience.

 Parameter

Type 2 cycle piston valve type gasoline engine for airplane
Displacement (cc) 26cc (1.59 cu in)
Bore x Stroke (mm) 1.3 in (34mm)*1.1 in (28mm)
Recommended props 16X10,17X8,17×10,18X8,18X10
Maximum Output 3.1 hp @ 2.28kw
Power supply 7V-14V
  1. Carburetor : Walbro
  2. Ignition : DC-CDI (Computer Controlled auto advance, electronic ignition system)
  3. SPARK PLUG: CM6 (M14 X1,L-36mm)
  4. Requires: Gasoline, 2-cycle oil, ignition battery & propeller
  5. speed rang : 1800-9800rpm
  6. Gasoline-Version : Pre-mixed Fuel, 25-40 (Gasoline):1 (recommended : 32:1 for real oil, or 40:1 for synthetic oil)
  7. Lubrication Oil : High quality fully synthetic 2 cylinder oil such as Motul 800 2T 100% synthetic racing motro oil , Red line two-stroke racing motor oil , Stihl Ultra high performance 2 cycle fully synthetic engine oil etc .
  8. Break in Propeller : 18×8 (Standard Two leafs prop)
  9. Cooling System : Air Cooled

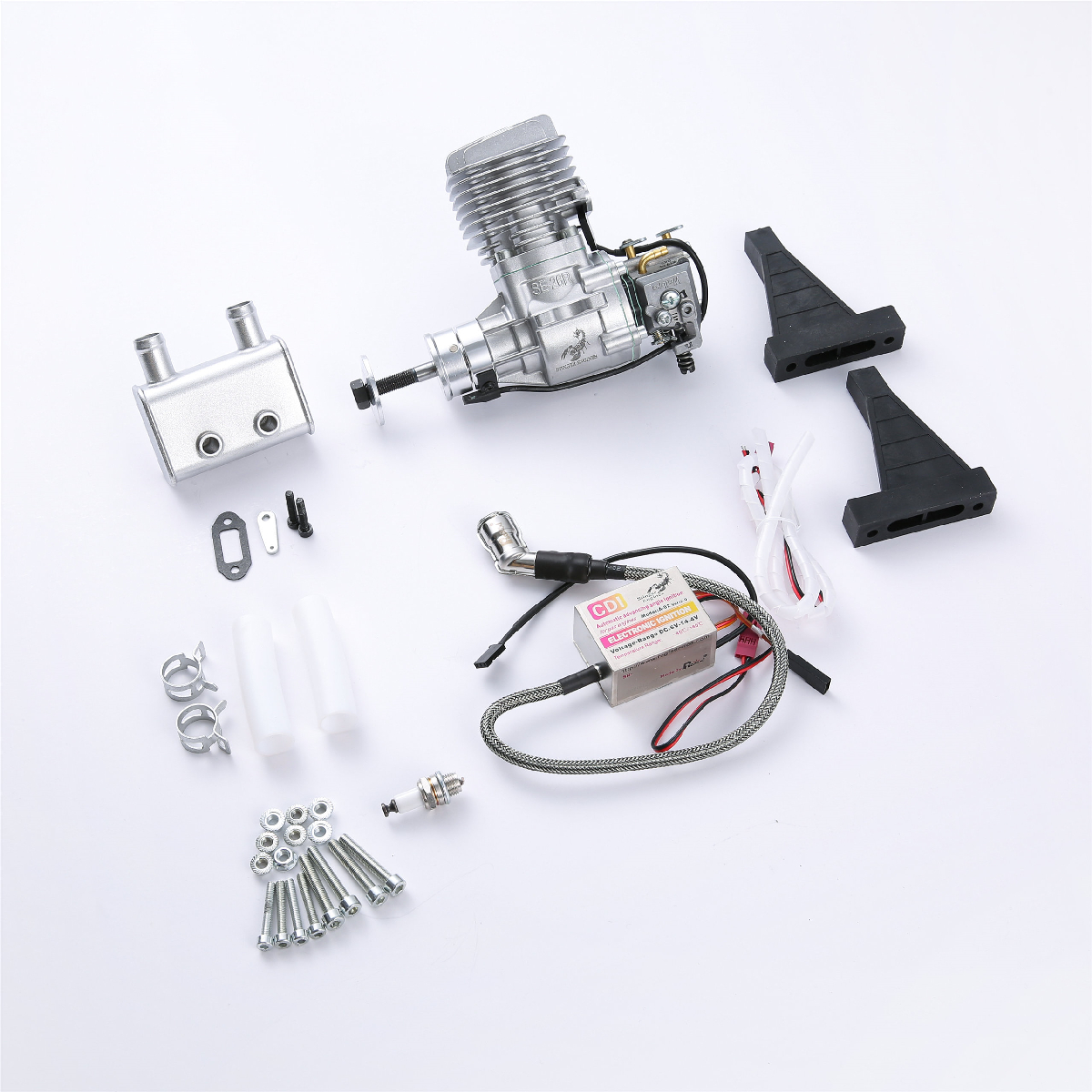

  10. RCGF Stinger Engine package Includes: electronic CDI ignition, muffler, spark plug, gaskets, bolts, throttle arm extension & manual.

Weight:

  1. Engine: 1.66 lb (755 g)
  2. Muffler: 2.5 oz (70 g)
  3. Ignition Module: 4.6 oz (130 g)
  4. Total: Weight: 2.11 lb (955 g)

Technical Data:

  1. Ignition Battery: 7.4V-14VNiCd or NiMH, 7.4V LiFe or 2S LiPo pack ( DO NOT use BEC, iBEC or uBEC)
  2. Gasoline/Oil Mix: (recommended : 32:1 for real oil, or 40:1 for synthetic oil)
  3. Replacement Spark Plug:  CM6 14mm
  4. Idle Speed: 1800 rpm/min

Additional information

Weight 4 kg
