Description

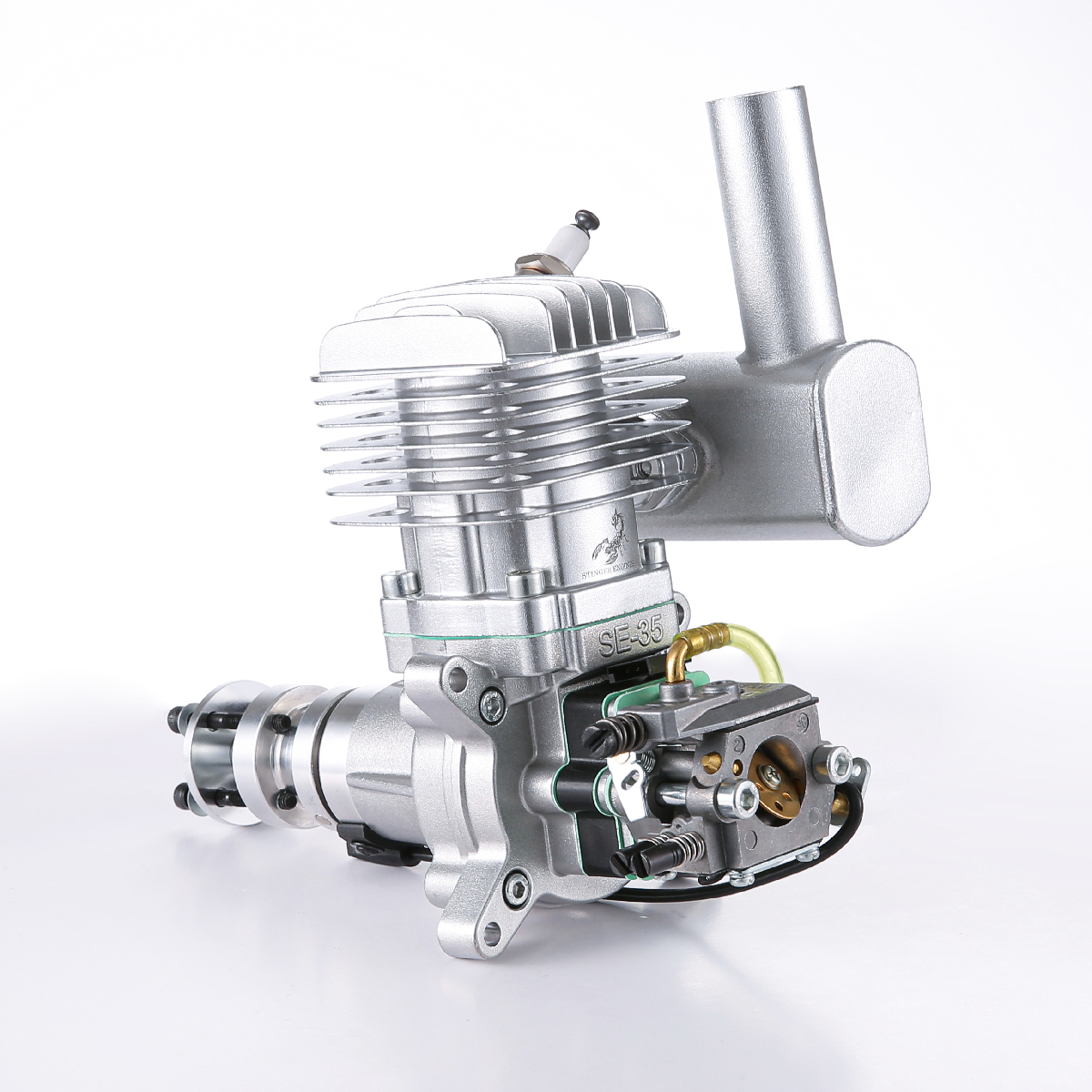

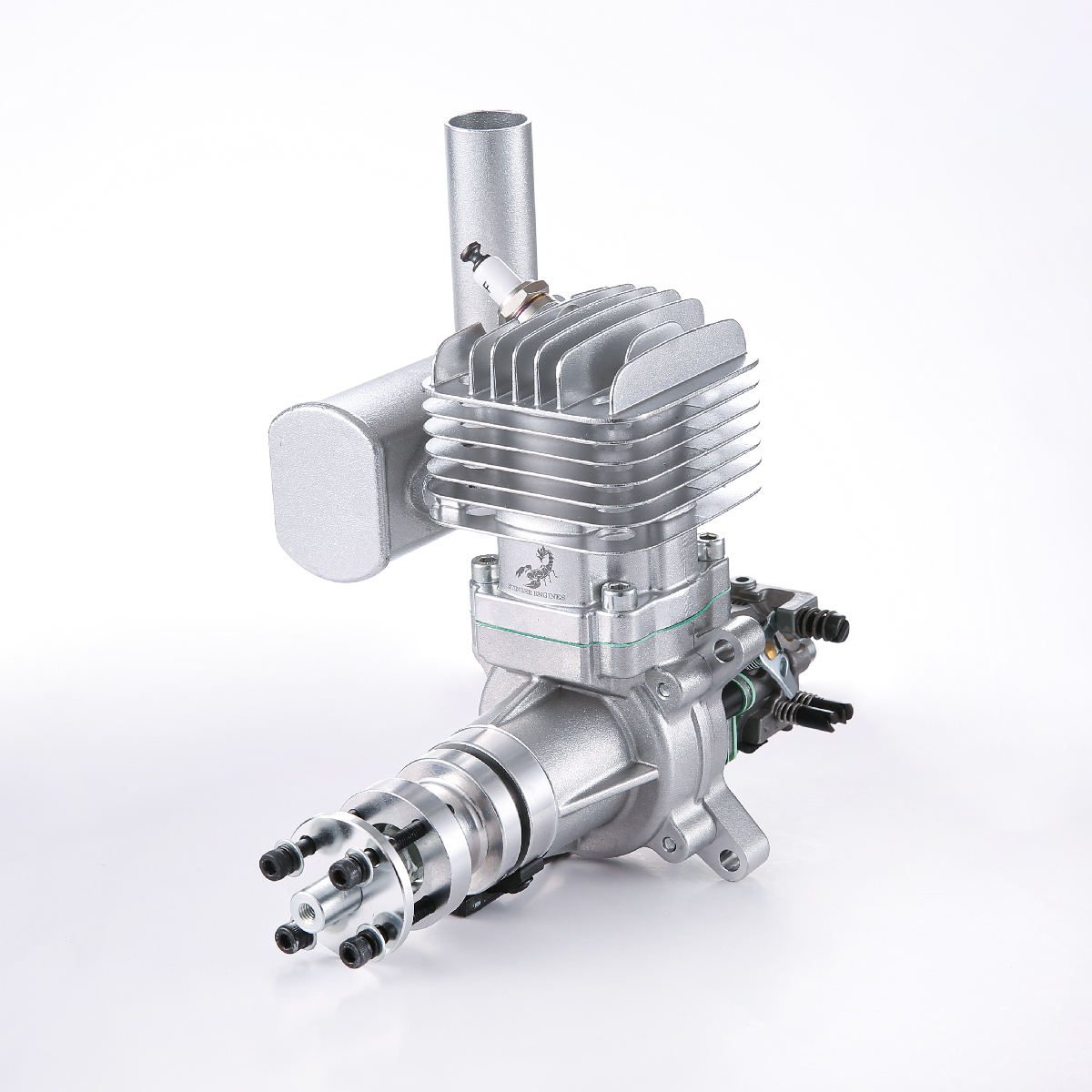

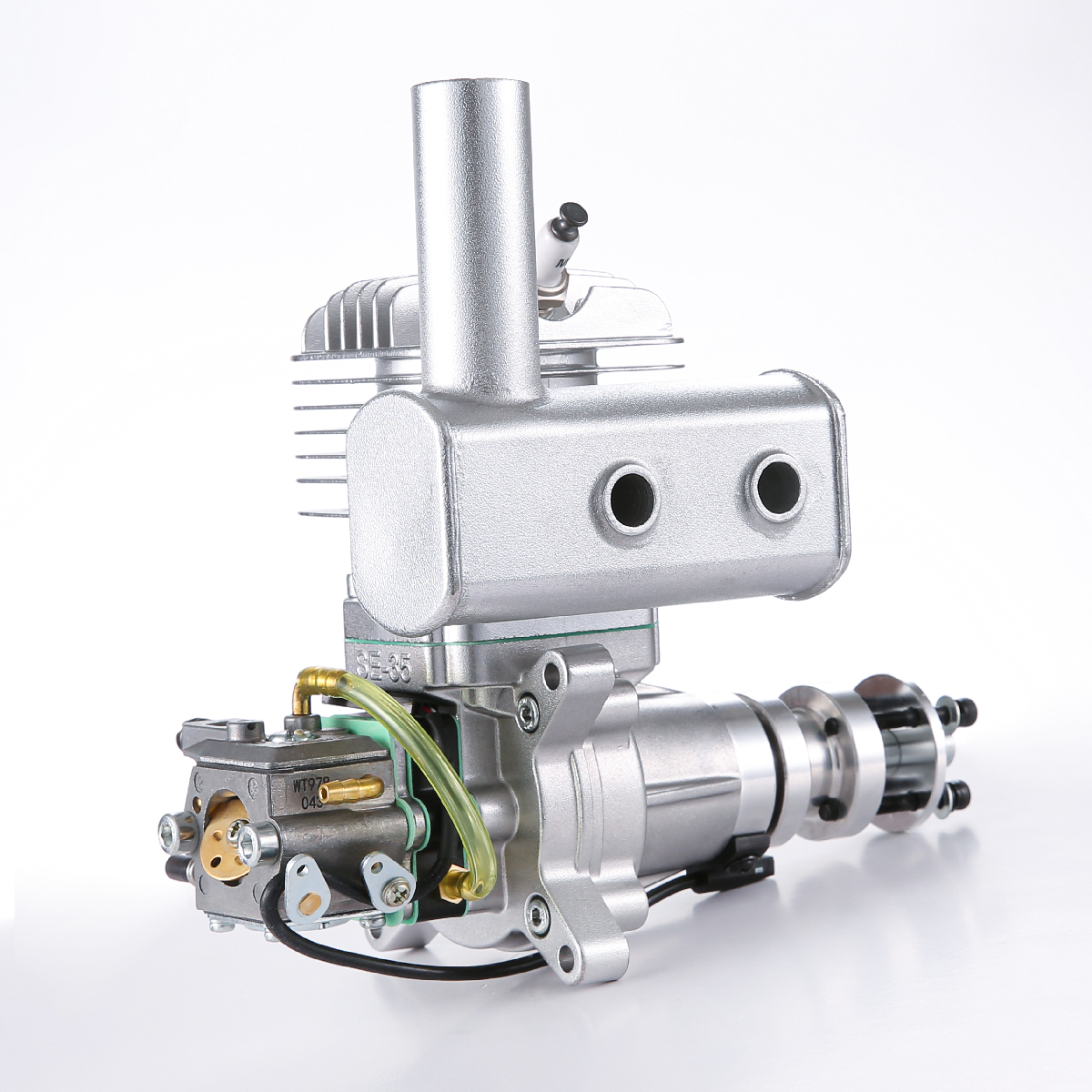

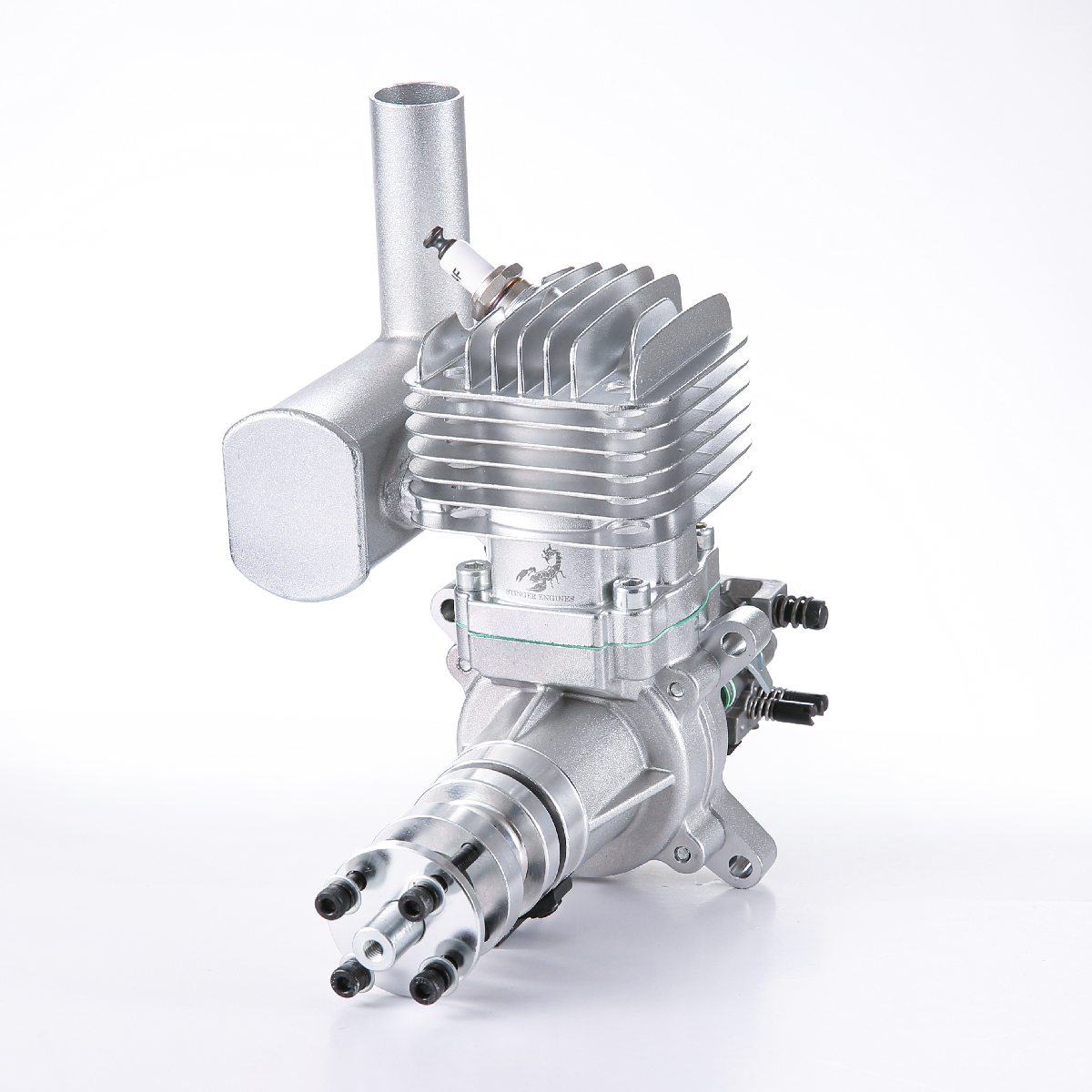

RCGF Stinger 35cc SE
Convenience and power for quarter scale!
With the New RCGF Stinger 35cc SE you get the economy of a gasoline engine in the size of a glow engine.Electronic ignition provides the spark for fast starting.
Timing automatically adjusts for peak power throughout the rpm range.
And a made-for-flight design ensures the best power-to-weight ratio for performance.
Parameter
| Type | 2 cycle piston valve type gasoline engine for airplane |
|---|---|
| Displacement (cc) | 35cc (2.13 cu in) |
| Bore x Stroke (mm) | 1.53 in (39mm)*1.18 in (30mm) |
| Recommended props | 19X8,20X8,20X10 |
| Maximum Output | 4.1 hp @ 9000 |
| Power supply | 7.4V-14V |
- Carburetor : Walbro
- Ignition : DC-CDI (Computer Controlled auto advance, electronic ignition system)
- Requires: Gasoline, 2-cycle oil, ignition battery & propeller
- speed rang : 1500-9000rpm(recommended : Gasoline 1 (recommended : 32:1 for real oil, or 40:1 for synthetic oil)
- Lubrication Oil : High quality fully synthetic 2 cylinder oil such as Motul 800 2T 100% synthetic racing motro oil , Red line two-stroke racing motor oil , Stihl Ultra high performance 2 cycle fully synthetic engine oil etc .
- Suggested Break-in Prop: 19×8 (Standard Two leafs prop)
- Sparking plug: NGK CM6 Type
- Cooling System : Air Cooled

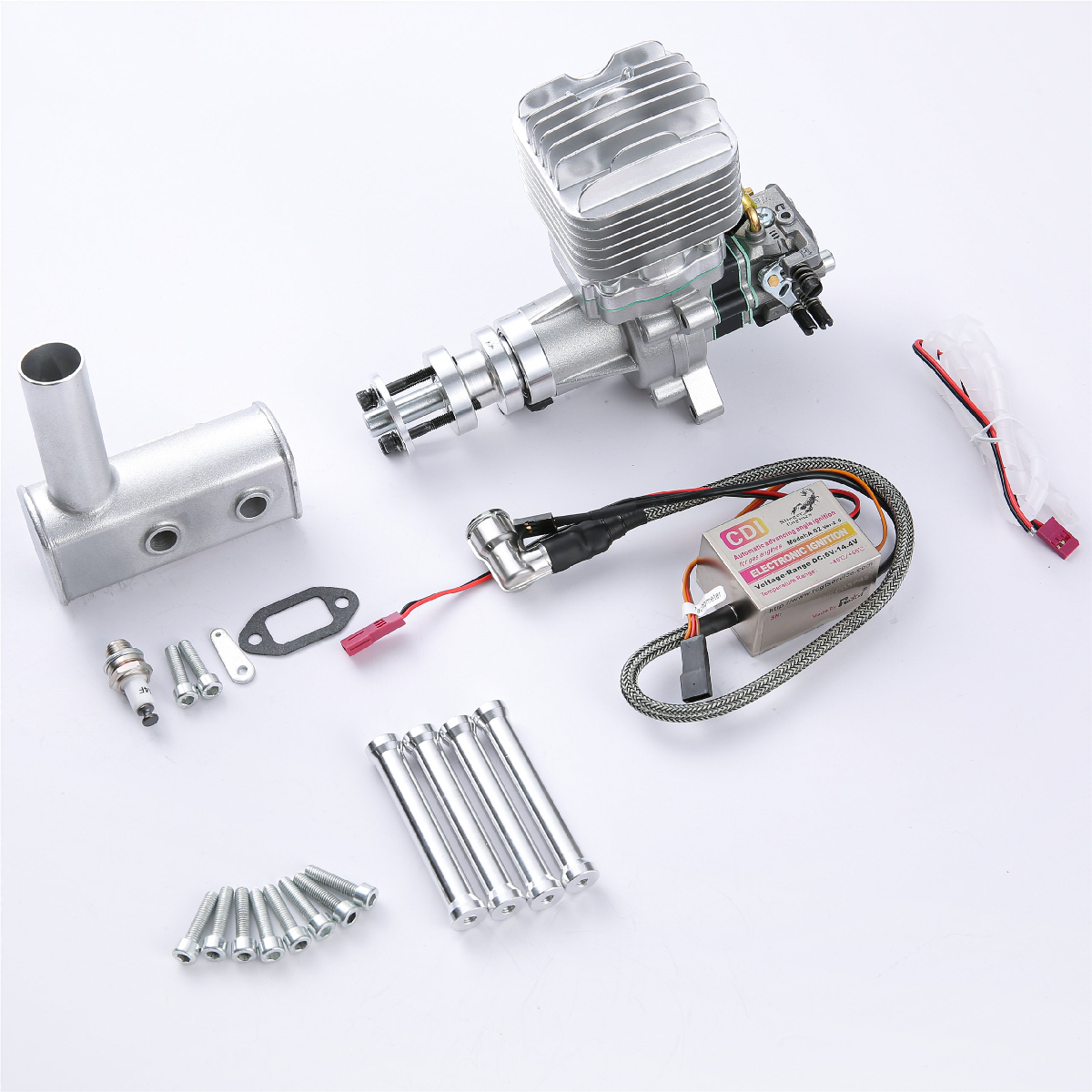

- RCGF Stinger engine package Includes: electronic CDI ignition, muffler, spark plug, gaskets, bolts, stand off,throttle arm extension & manual.
Weight :
- Engine: 2.03 lb (923 g)
- Muffler: 3.4 oz (97 g)
- Ignition Module: 4.4 oz (125 g)
- Total: Weight: 2.52 lb (1145 g)
Technical Data:
- Ignition Battery: 7.4V-14V NiCd or NiMH, 7.4V LiFe or 2S LiPo pack ( DO NOT use BEC, iBEC or uBEC)
- Gasoline/Oil Mix: (recommended : 32:1 for real oil, or 40:1 for synthetic oil)
- Replacement Spark Plug: NGK CM6 or equivalent
- Idle Speed: 1800 rpm/min
Additional information
| Weight | 4 kg |
|---|
